In structural engineering and construction, the choice of materials and shapes is crucial to ensuring the strength and stability of buildings or structures. Among the many options available, C-channel steel and I-beams are two commonly used choices. Each has its unique properties and applications, but a common question is: which is stronger, C-channel steel or I-beams? This article will explore the characteristics and applications of these two shapes and ultimately determine which one offers greater strength.
Understanding the C Channel

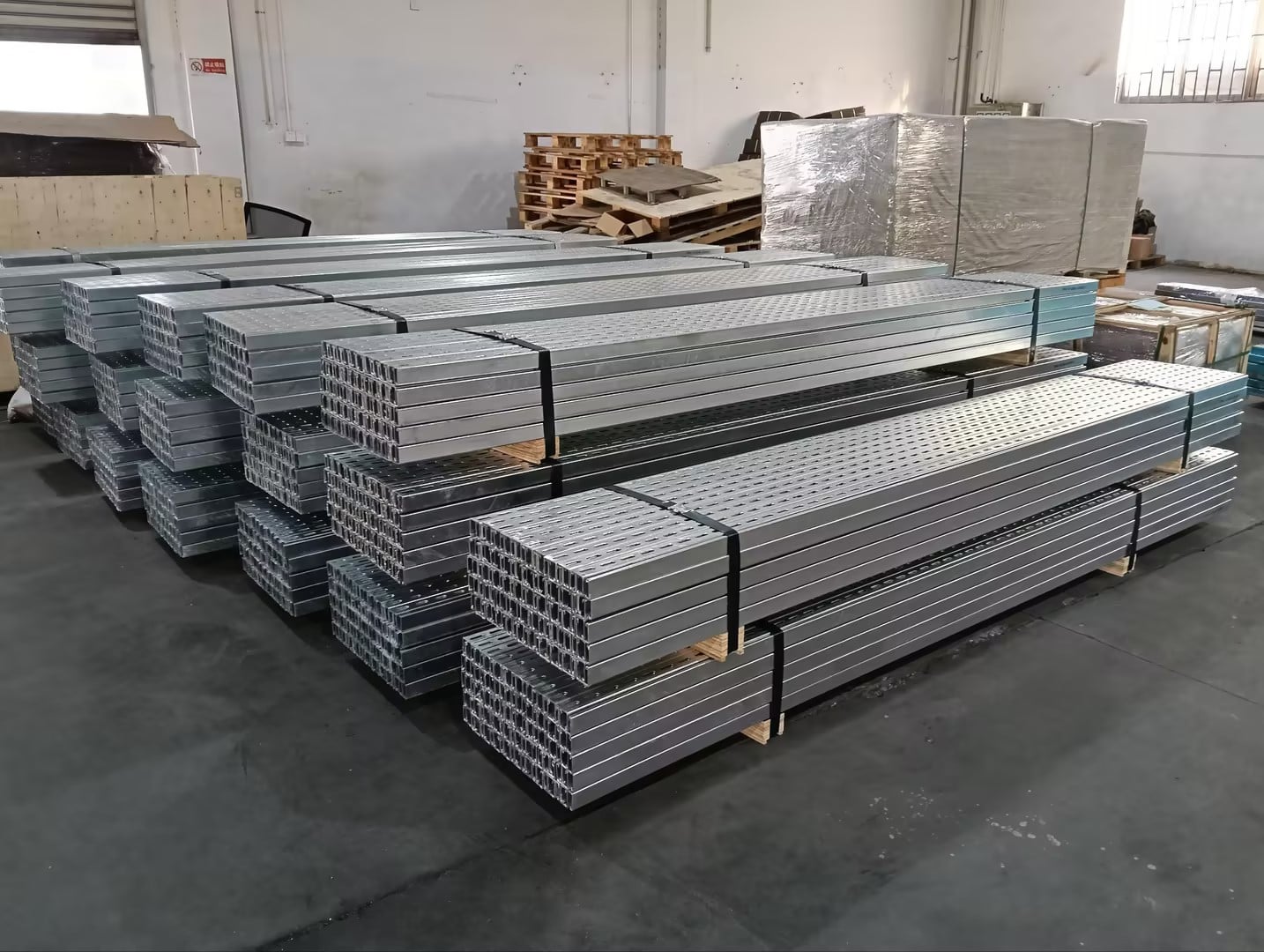

C-channel steel, also known as C-beam or channel steel, is a type of structural steel with a cross-sectional shape resembling the letter "C". It is characterized by a vertical web and two horizontal flanges. Due to its versatility and ease of use, C-channel steel is widely used in the construction and manufacturing industries.
Characteristics of C-channel
1. Weight: C-channel steel is generally lighter than I-beams, making it easier to handle and transport. This can be a significant advantage in projects with strict weight requirements.
2. Flexibility: The C-groove design offers a degree of flexibility, which is beneficial in applications where slight movement is expected.
3. Cost-effectiveness: C-beams are generally more economical than I-beams, making them a popular choice for budget-conscious projects.
4. Load Distribution: Although C-channel steel can withstand loads, its load distribution capacity is not as good as that of I-beam steel.
Application of C-type trenches
C-channel devices are widely used in various fields, including:
- Building frames: They are often used in the construction of building frames, especially in smaller structures or as auxiliary supports.
- Support: C-channel steel can be used for structural support to provide additional stability.

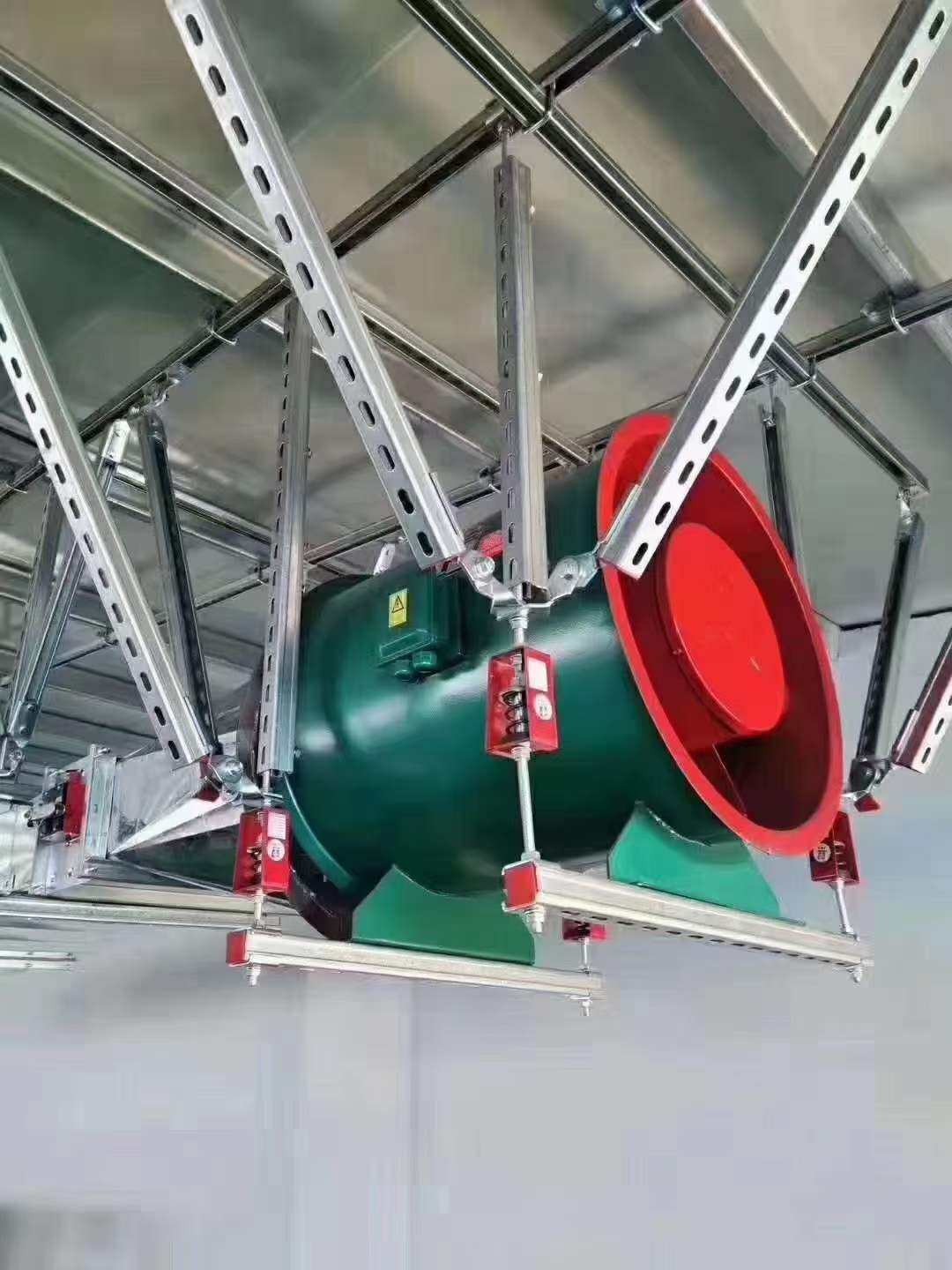

- Supporting structures: These are frequently used in the supporting structures of machinery and equipment.
Understanding I-beams
I-beams, also known as H-beams or W-beams (wide-flange steel), have a cross-sectional shape resembling the letter "I". They consist of a vertical web and two horizontal flanges, similar to C-channel steel, but with a more prominent shape and higher strength.
Properties of I-beams
1. Strength: I-beams are renowned for their exceptional strength-to-weight ratio. This design enables them to withstand heavy loads and resist bending and torsion.
2. Stability: The wide flanges of the I-beam provide greater stability, making it ideal for applications where structural integrity is critical.
3. Load-bearing capacity: Compared with C-beams, I-beams can withstand greater loads and have longer spans, making them suitable for heavy construction projects.
4. Versatility: I-beams can be used in a variety of applications, from residential buildings to large commercial buildings.
Applications of I-beams
I-beams are typically used for:

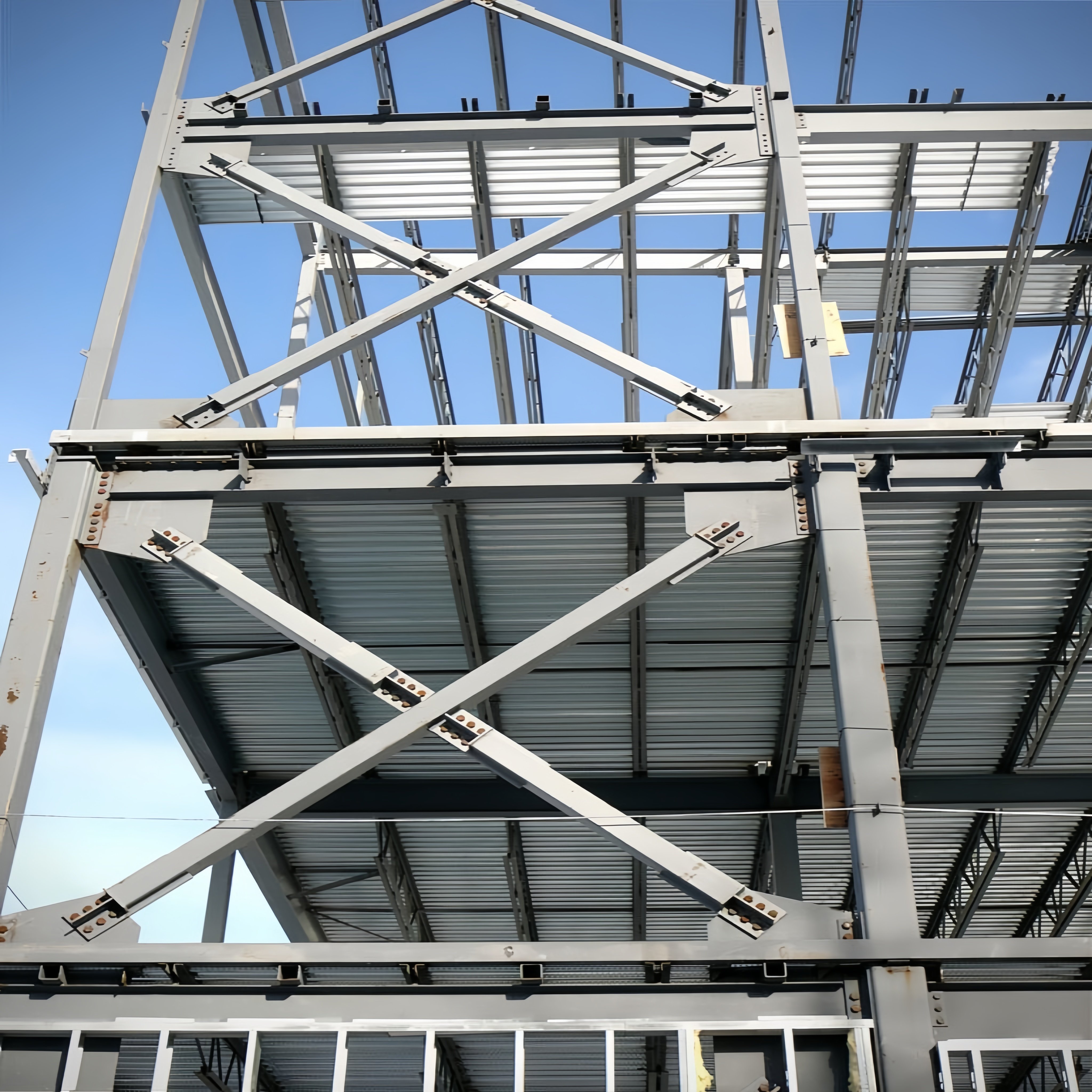

- High-rise buildings: Their strength makes them ideal for supporting the weight of high-rise buildings.
- Bridges: Because I-beams can span long distances without sagging, they are often used in bridge construction.
- Industrial Applications: They are often used in warehouses and factories to support heavy machinery and equipment.
Strength Comparison: C-channel steel vs. I-beam steel
When comparing the strength of C-beams and I-beams, the following factors need to be considered:
1. Load-bearing capacity
I-beams have a significantly higher load-bearing capacity than channel steel. The design of I-beams allows them to distribute weight more effectively, making them more suitable for heavy-duty applications. In contrast, channel steel is better suited for light loads and smaller structures.
2. Resistance to bending and torsion
I-beams excel in resisting bending and torsional forces due to their shape and material distribution. Wider flanges provide additional strength, making them ideal for applications where structural integrity is critical. Channel steel, while capable of withstanding loads, is more prone to bending under heavy stress.
3. Span Length
I-beams can span longer distances without additional supports, making them the preferred choice for large structures such as bridges and high-rise buildings. Channel steel, on the other hand, is typically used for shorter spans and may require additional supports to maintain stability.
4. Weight Considerations
While C-channel steel is lighter and easier to handle, this advantage comes at the cost of insufficient strength. In applications where weight is a constraint, C-channel steel may be the preferred choice, but for heavy-duty applications, the strength advantage of I-beams more than compensates for their weight.
In conclusion, when comparing the strength of channel steel and I-beams, I-beams are clearly superior. Their excellent load-bearing capacity, resistance to bending and torsion, and longer spans make them the material of choice for heavy-duty applications in the construction and engineering fields.
However, the specific needs of the project must be considered before making a decision. For lightweight applications or situations with limited budgets, C-channel steel may be more suitable. Ultimately, the choice between C-channel steel and I-beams should be based on the specific needs of the project, taking into account factors such as load requirements, span length, and overall structural integrity.
In the fields of construction and engineering, understanding the advantages and disadvantages of different materials and shapes is crucial for building safe and durable structures. Whether you choose C-channel steel or I-beams, making an informed choice will be key to the success of your project.
