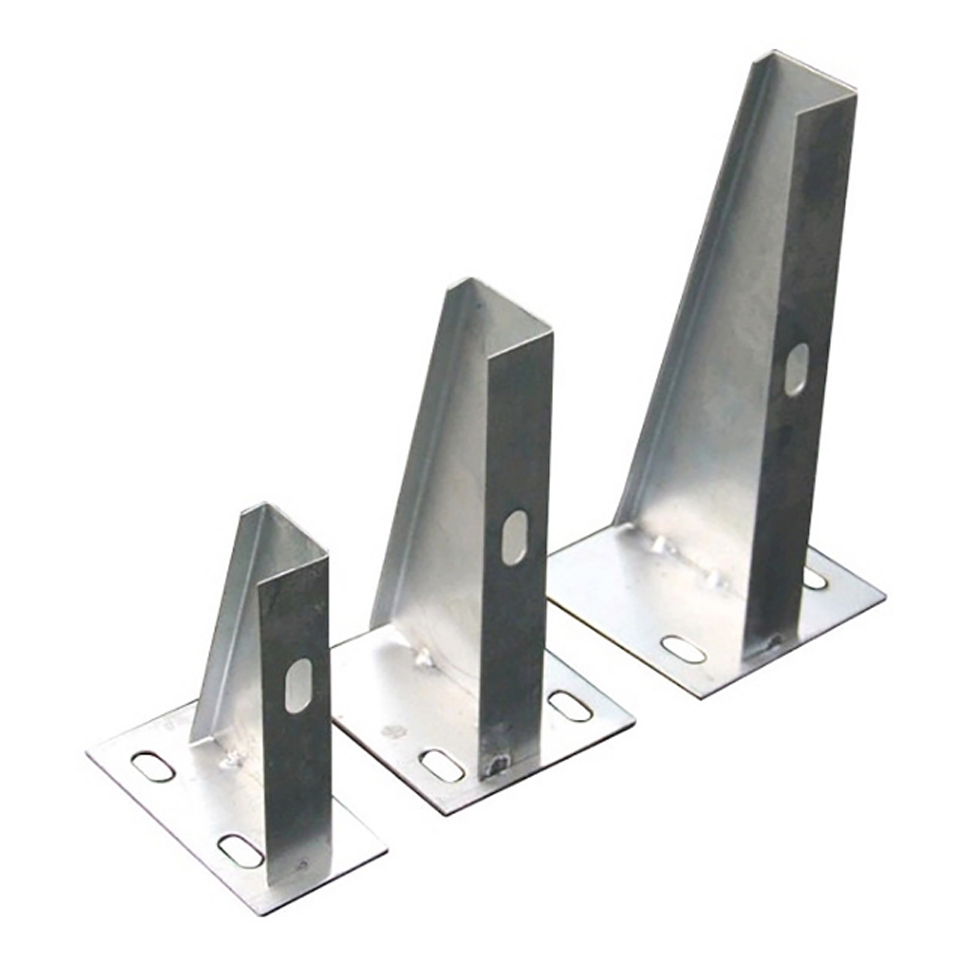

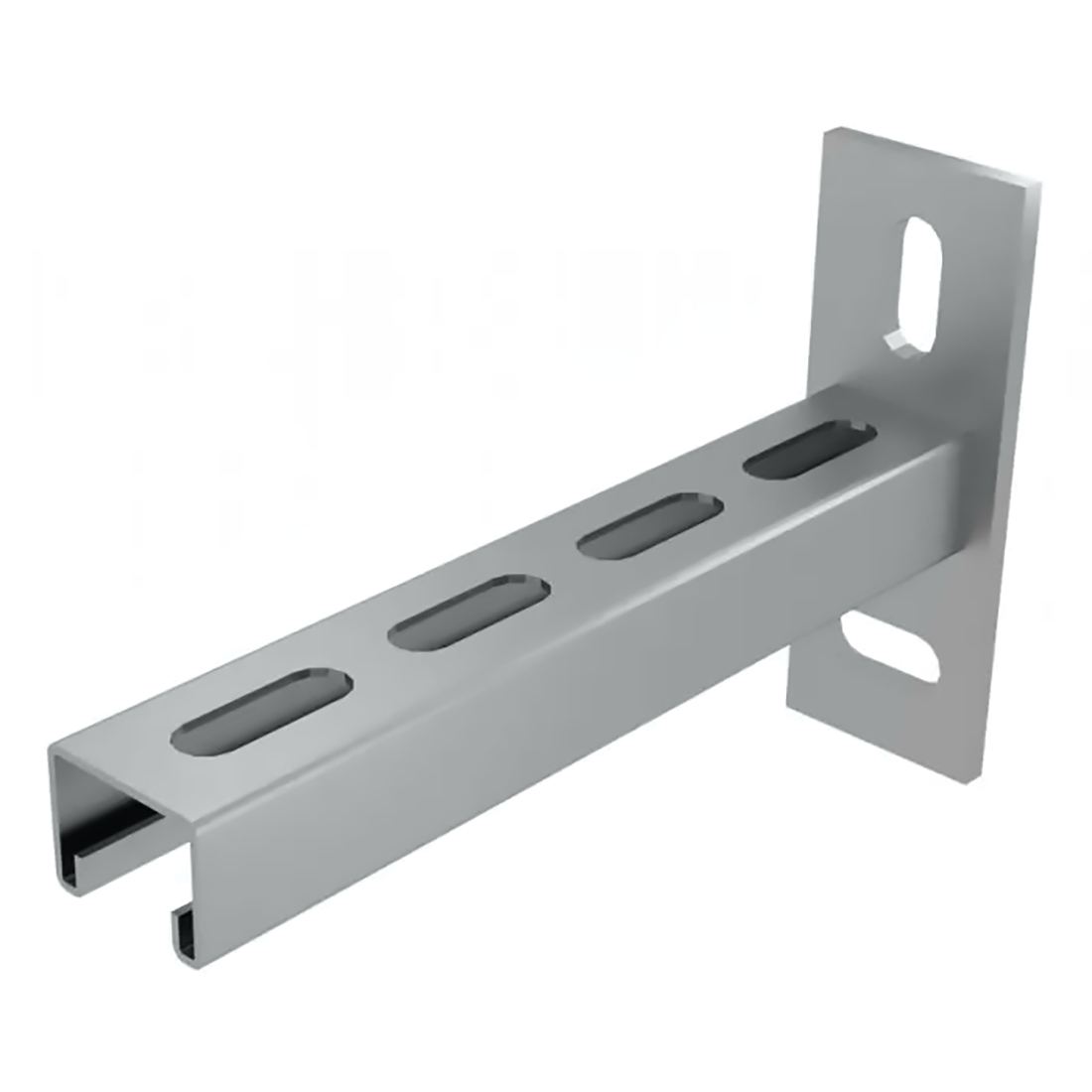

SS316 Cable Tray Bracket — Corrosion-Proof Support Arms for Power Plant Cable Systems

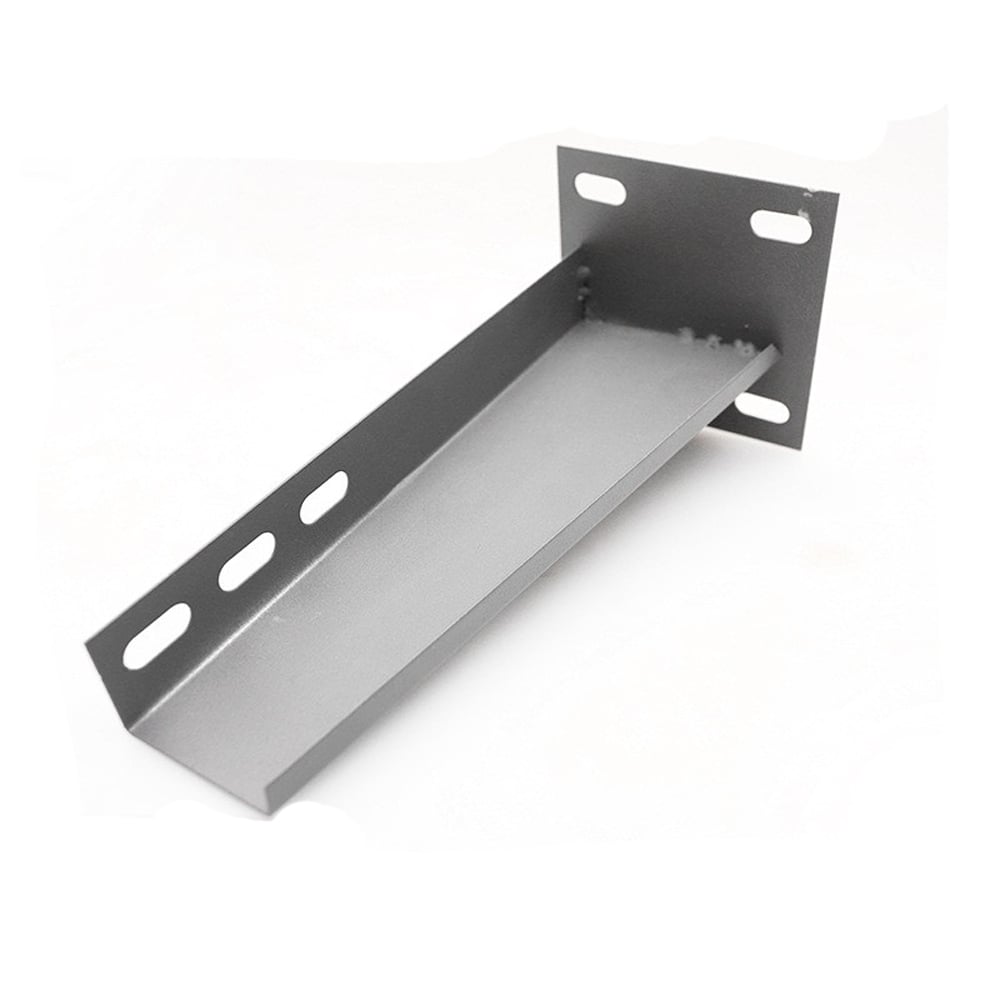

Qinkai SS316 cable tray brackets are cantilever support arms fabricated from 316L stainless steel, purpose-built for power plant environments where moisture, heat and corrosive media attack conventional supports. The 2–3% molybdenum content of 316L resists pitting and crevice corrosion in boiler houses, flue-gas desulfurization areas, circulating-water pump rooms and coastal salt-spray atmospheres.
Available as single-arm and double-arm brackets in lengths from 150 to 900 mm, with 41×41 / 41×62 / 41×82 mm channel sections and welded heavy-duty construction. Load ratings are verified to NEMA VE 1 with a 1.5 safety factor on collapse load. Brackets are passivated to ASTM A380 and supplied complete with matching 316L fasteners and connectors.
- Technical Specifications
- Advantages
- Applications
- FAQ
- Recommended Products
Technical Specifications
General Specifications
| Parameter | Specification |
| Product Type | Single Arm / Double Arm / Heavy-duty Welded |
| Material | 316L stainless steel (X2CrNiMo17.12.2, Mo 2–3%) |
| Standard Length | 200 / 300 / 400 / 500 / 600 / 800 mm (150–900 mm series) |
| Channel Section | 41×41 / 41×62 / 41×82 mm |

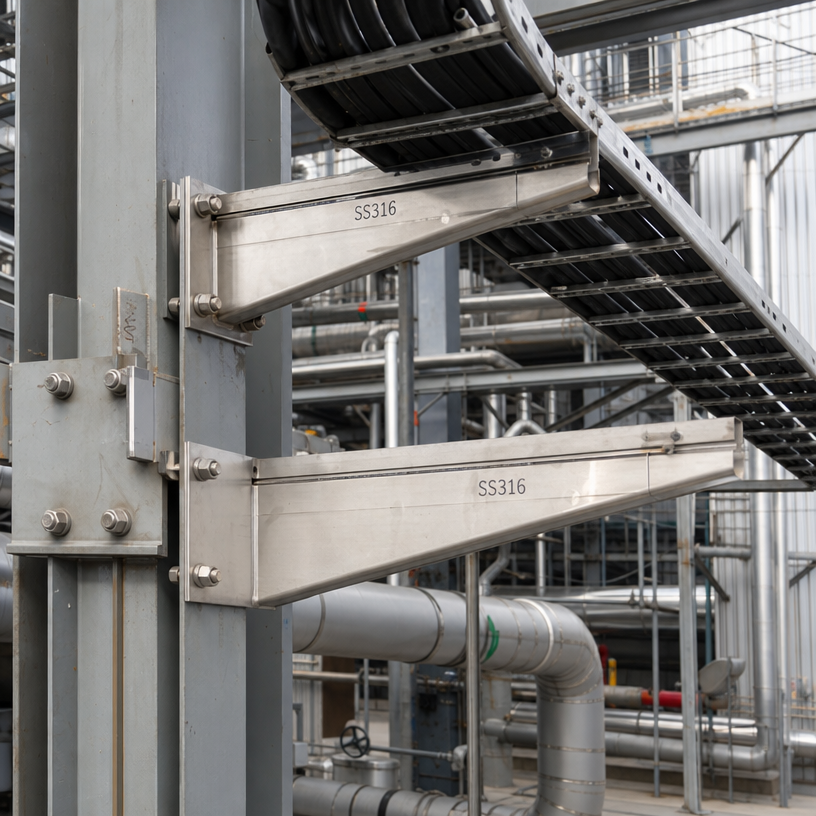

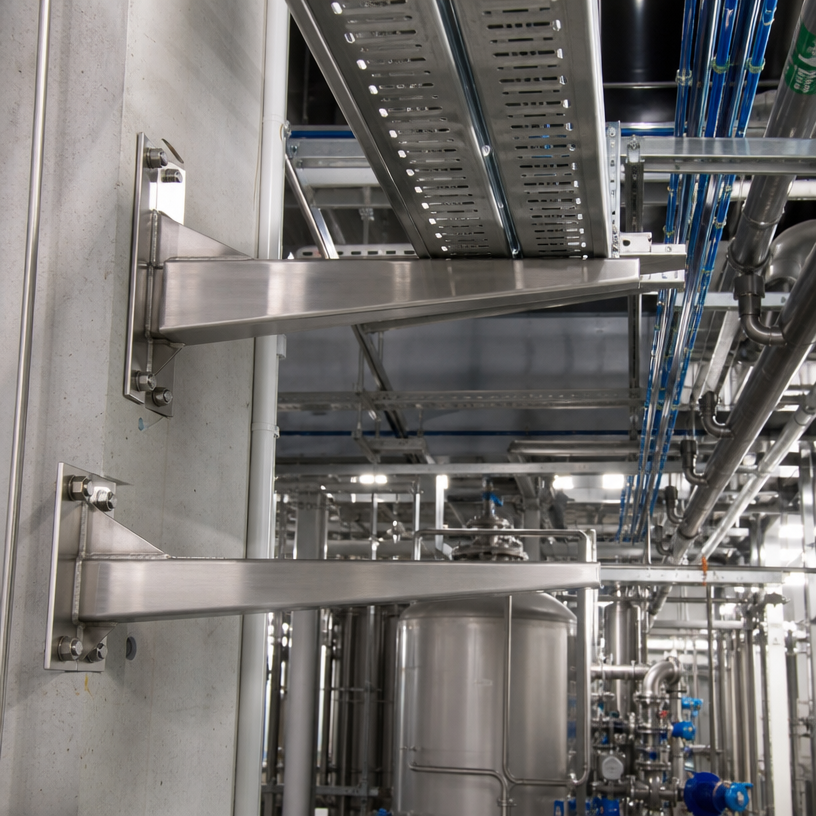

| Mounting | Wall mount (316L expansion bolts) / column mount (welded or clamp) |
| Load Test | Per NEMA VE 1, safety factor 1.5 on collapse load |
| Surface Finish | ASTM A380 pickling & passivation (electropolishing optional) |
| Standard | NEMA VE 1 / IEC 61537 |

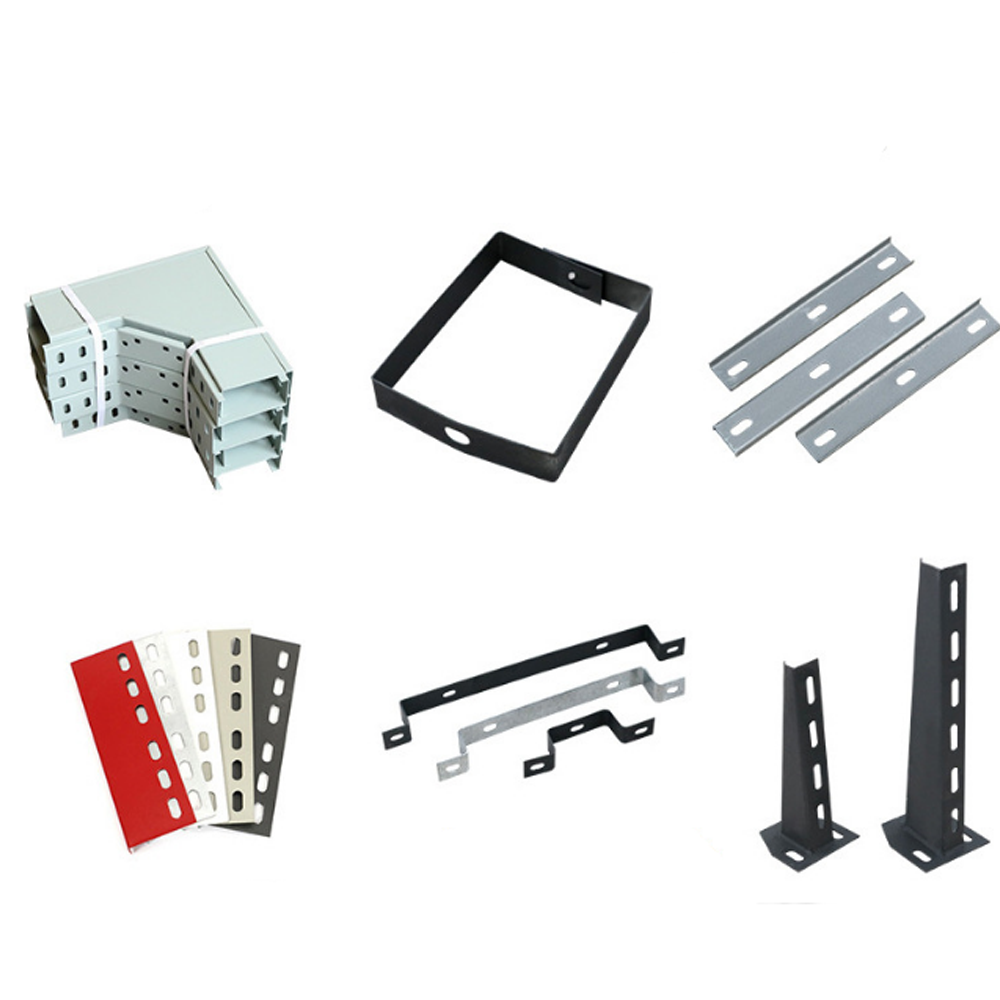

| Accessories | 316L bolts, connectors, cover supports, tie points (same grade) |
| Operating Temperature | -60 °C to +400 °C |
Load Reference (indicative; verified load tables per NEMA VE 1 shipped with order)
| Bracket Length | Typical Single-Arm Load (indicative) |
| 300 mm | ~400 kg |
| 450 mm | ~250 kg |
| 600 mm | ~150 kg |
| 800 mm | ~90 kg |
Note: values above show the length-to-capacity relationship; every size ships with a NEMA VE 1 verified load table and safety factor calculation.
Advantages
Six Core Advantages

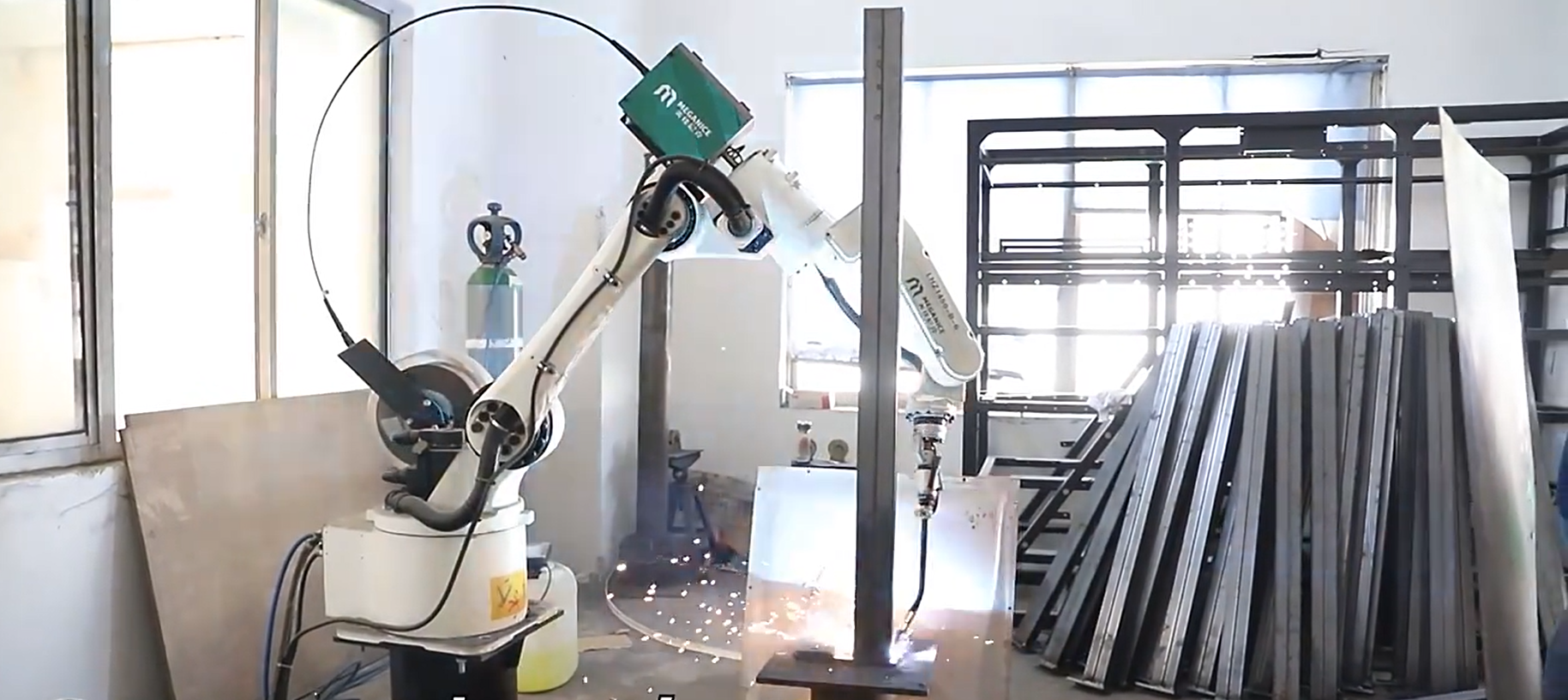

| Advantage | Value Proposition |
| 1. 316L corrosion resistance | 2–3% molybdenum immune to boiler-house humidity, FGD chemicals and coastal salt spray |
| 2. Stable in high-temperature zones | 316L rated -60 °C to +400 °C — no deformation in boiler house / turbine hall hot zones |
| 3. Welded heavy-duty structure | One-piece welded construction with diagonal reinforcement — 1.5+ safety factor on heavy tray runs |
| 4. All-316L matching package | 316L bolts and connectors supplied together — no galvanic corrosion, no "rusty bolts on rust-free brackets" |
| 5. Verifiable load ratings | NEMA VE 1 verified load tables shipped with every order — design institutes can verify directly |
| 6. Fast on-site installation | Pre-welded with standard hole patterns — wall/column mount, ready to use, short outage windows |
Core Competitiveness (Why Qinkai)
Deliverable load data (hard qualification) — NEMA VE 1 verified load tables + safety factor calculations + assembly drawings shipped with every order, ready for power plant construction drawings and acceptance files.
Traceable material certification — 316L mill certificates with heat numbers shipped; plant owners only accept documented material.
Full power plant coverage — boiler house, turbine hall, cable spreading room, circulating-water pump room, coal conveyor gallery — one selection table covers the entire plant.
ASTM A380 passivation — pickled and passivated before shipment; chromium oxide film restored, zero surface free iron on site.
Factory-direct, integrated manufacturer — own-plant pricing; supplied together with cable trays and seismic supports from the same factory — one-stop procurement for the plant's entire cable support system.
Applications

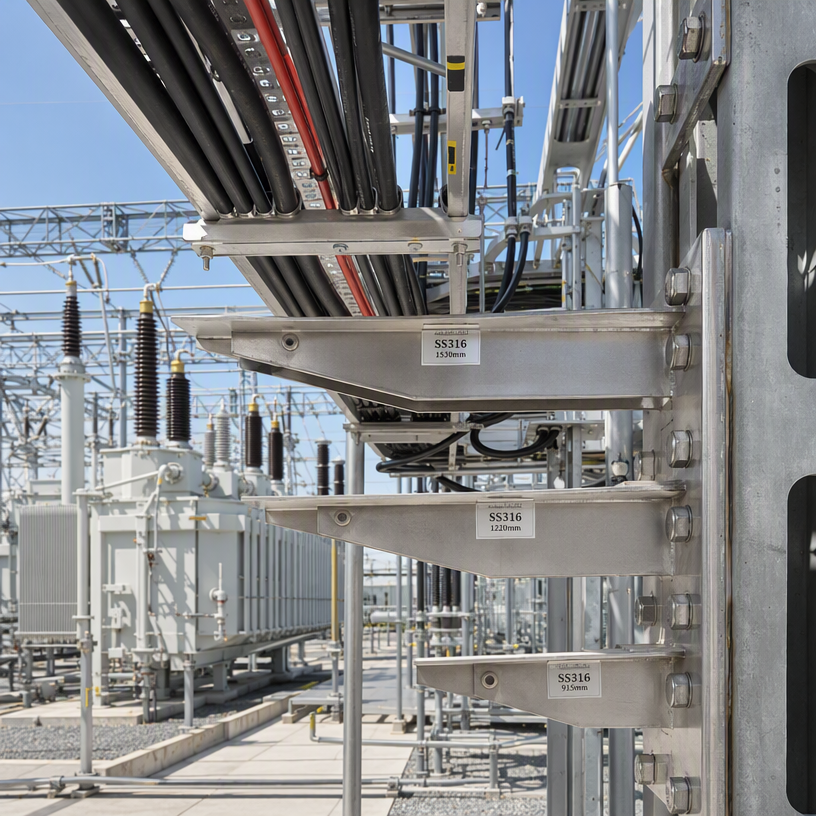

A power plant is one of the harshest industrial environments for cable support systems: high temperature and humidity in the boiler house, acid/alkali media in the FGD area, salt spray in the circulating-water pump room, and permanent dampness in cable spreading rooms — ordinary galvanized brackets show rust within 2–3 years, while SS316 brackets cover every corrosive zone through the material's inherent resistance.
| Application | Key Value |
| Boiler House | High heat + humidity + dust media — 316L holds, does not deform, does not rust |

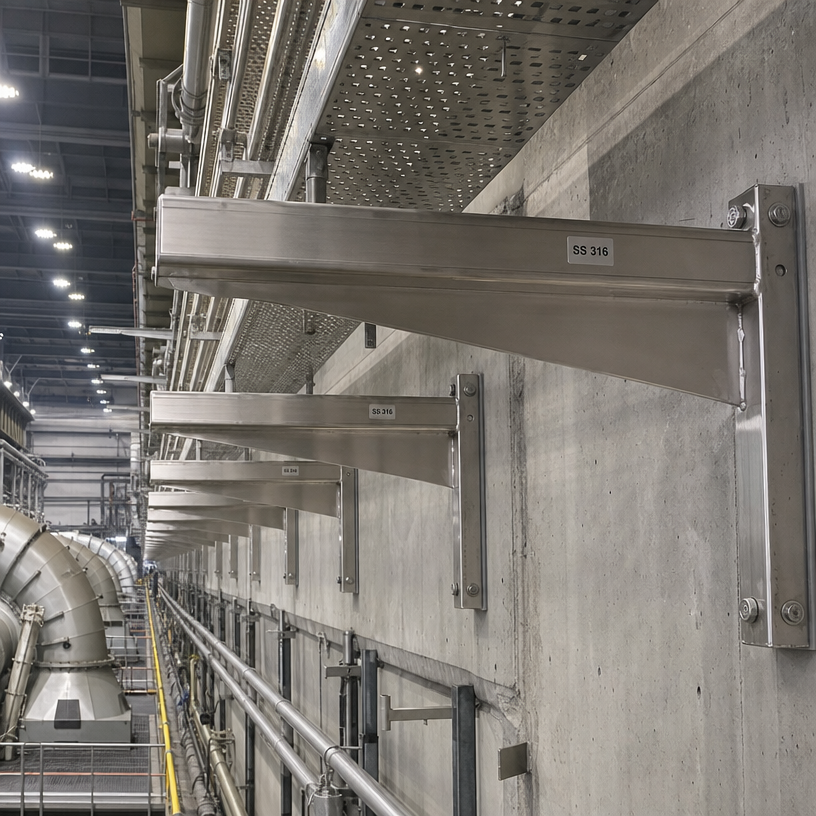

| Turbine Hall | Steam condensation environment — no corrosion from long-term wet condensation |
| Cable Spreading Room / Tunnel | Permanently humid enclosed space — maintenance-free operation |
| Circulating Water Pump Room | Salt spray + high humidity dual attack — first choice for coastal plants |
| FGD / Flue Gas Treatment Area | Acid/alkali media — 316L chemical resistance superior to HDG |

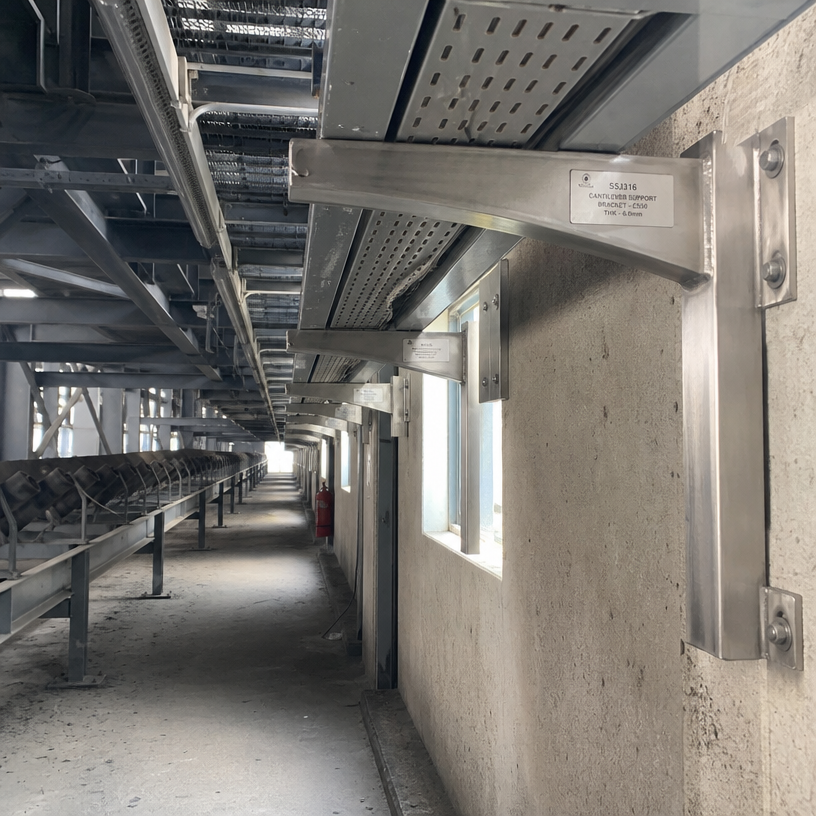

| Coal Conveyor Gallery | Coal dust + washdown water — easy to clean, washdown-resistant |
| Coastal Power Plants | Marine salt-spray atmosphere — maintenance-free in ISO 12944 C5-M |
Application block copy: From the boiler house to the circulating-water pump room, Qinkai SS316 brackets carry power and control cables through every corrosive zone of the plant — heat, humidity, salt spray and flue-gas chemicals — with NEMA VE 1 verified loads and zero maintenance for the plant's service life.
FAQ
Q1: What is the length and load range?
A1: Standard lengths 150–900 mm (common 300/400/500/600), load-tested per NEMA VE 1 with 1.5 safety factor; load tables shipped with every order.
Q2: Why does a power plant need 316 stainless brackets?
A2: Boiler house, FGD area and pump rooms expose supports to heat, humidity, acid/alkali and salt spray that quickly rust galvanized parts; 316L with 2–3% molybdenum is maintenance-free across the plant's corrosive zones.
Q3: How to choose between SS316 and hot-dip galvanized brackets?
A3: HDG for normal dry areas (economical); SS316 for boiler house, FGD area, pump rooms and coastal salt-spray zones — zone-based selection, right the first time.
Q4: Single arm or double arm?
A4: Single arm for one-side wall/column routing; double arm for two-side routing or heavy tray runs — double capacity with balanced loading.
Q5: Can you customize length / channel section? MOQ?
A5: Yes — length, section and hole patterns all customizable; quote within 24 h of your drawing; MOQ from 200 pcs per size.
Q6: Do you provide load test data? Acceptable to design institutes?
A6: Yes — NEMA VE 1 verified load tables + safety factor calculations + 316L mill certificates shipped, submittable directly to design institutes and plant owner acceptance.
